Panasonic DT401-F Modular Multifunctional SMT Pick And Place Machine Original And Used

Description
Features: Can Handle Parts Ranging From Microchips To Large Parts Such As BGAs, CSPs And Connectors Application: Modular Multi-Functional SMT Placement Machine
Model: DT401-F Brand: Panasonic
Condition: Pre-owned Functionality: Industrial Use (SMT)
Packaging: Wooden Box / Crate Lead Time: 15 Days
Payment Terms: 20% Deposit - 80% Before Delivery Price: Negotiable
High Light:

Multifunctional SMT Pick And Place Machine

,

Panasonic DT401-F Pick And Place Machine

,

Modular Panasonic SMT Machine

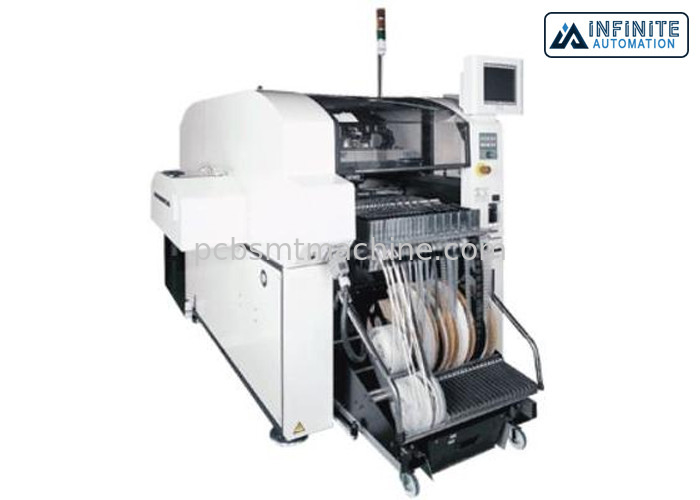

Panasonic DT401-F Modular Multi-Functional Placement Machine, Original and Used SMT Pick and Place Machine

The Panasonic DT401 is a direct tray modular, multi-functional placement machine that's designed to give users the flexibility to place a large number of varied, odd-shaped components at high speeds. Direct placement head pickup allows for the wide component range, while tray feeder replenishment and a feeder collective exchange cart deliver improved operation rates.

Can handle parts ranging from microchips to large parts such as BGAs, CSPs, and connectors

The DT401 handles a broad spectrum of components including 0402 chips, BGAs, CSPs, connectors, and other large components up to 100 mm X 90 mm @ 25mm thickness. To ensure such flexibility, the machine supports five kinds of tape feeders, equipped with variable feed pitch capabilities. The DT401 uses the same feeder table and feeders as our CM402, which results in cost savings, reduction in feeder inventory, greater flexibility, and interchangeability.

Load control head supplied as standard

  • The series of three load control heads yield a maximum load of 50 N which enables almost all insertion connectors to be mounted.


Features & Benefits

  • Direct pickup along with on-the-fly component replenishment and changeover allows high-speed production
  • Supports twin and single tray feeders
  • 8 mm double tape feeders, as well as 12/16, 24/32, 44/56, and 72 mm tape feeders
  • Interchangeable platform
  • Handles up to 510 mm L x 460 mm W boards


Specifications


Model IDDT401-F
Model No.KXF-E64C
PCB dimensions (mm)L 50 x W 50 to L 510 x W 460
Max. speedChip0.7 s/chip (tape or bulk)
Tray0.8 s/QFP (single tray), 1.2 s/QFP (twin tray)
Placement accuracyChip±50 µm/Chip (Cpk1)
Tray±35 µm/QFP (Cpk1)
No.of component inputsTapeMax.54 *2
TrayMax.20 (single tray), Max.40 (twin tray)
Component dimensions (mm)(0201”) 0603 chip to L 100 x W 90 x T 25
PCB exchange time0.9 s
(Board length: up to 240 mm Under optimum conditions)
Electric source *33-phase AC 200 V, 1.5 kVA
Pneumatic source *40.49 MPa, 150 L/min (A.N.R.)
Dimensions (mm)W 1 260 x D 2 542 x H 1 430 *5
Mass *61 560 kg



*2: When 8 mm double tape feeder used.
*3 : Compatible with 220 / 380 / 400 / 420 / 480 V
*4: Only for the main body
*5: Excluding monitor and signal tower
*6: Standard configuration, excluding batch exchange cart and tray feeders. This differs depending on the option configuration.
*Values such as maximum speed and placement accuracy may vary depending on operating conditions.
