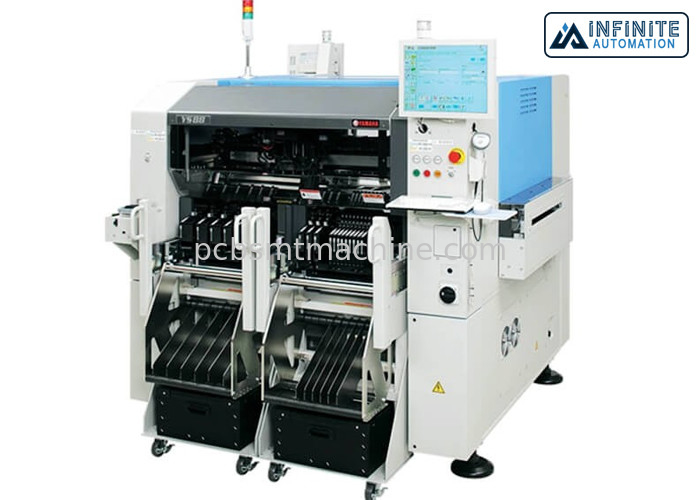

Yamaha YS88 Multi-Functional Wide-Range Modular SMT Mounter 8,400CPH Original And Used
The YS88 is equipped with 3 fully independent servo-controlled Flying Nozzle Change (FNC) heads, each carrying up to 6 nozzles. It delivers high-end performance with chips, ICs, and odd form components. Not only does it offer placement rates of up to 8.9k components per hour with a placement accuracy of 30 microns for ICs and QFPs, but it also handles an extremely wide component range as tall as 25.5mm. Precision force control allows optimal handling of press-fit through-hole connectors with forces up to 30N.
Features:
Specifications:
| Model | YS88 (Model: KJH-000) |
| Applicable PCB | L510xW440mm to L50xW50mm (Note 1)(Note 2) |
| Through-put (Optimum) | 8,400CPH(0.43sec/CHIP Equivalent) |
| Mounting accuracy (Yamaha's standard components) | Absolute accuracy (μ+3σ):+/-0.05mm /CHIP, +/-0.03mm /QFP |
| Repeatability(3σ) +/-0.03mm /CHIP, +/-0.02mm /QFP | |
| Applicable components | 0402(Metric base)to □55mm components, SOP/SOJ, QFP connector, PLCC,CSP/BGA, Long connector(W45xL100 mm or less)(Note 3)(Note 4) |
| Odd-shaped components(such as special connectors)which require pressing force control mounting(10 to 30N) | |
| Height of components which can be mounted: 25.5mm or less(Note 5) | |
| Allowable height on PCB surface before transport: 6.5mm or less | |
| Number of component types | 90types(Max,8mm tape reel conversion)(Note 1) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry states |
| External dimension(Note 6) | L1,665xW1,562(End of cover)xH1,445mm(cover top)L1,665xW1,615(End of guide for feeder carriage)xH1,445mm(cover top) |
| Weight | Approx. 1,650kg(Main unit only) |
