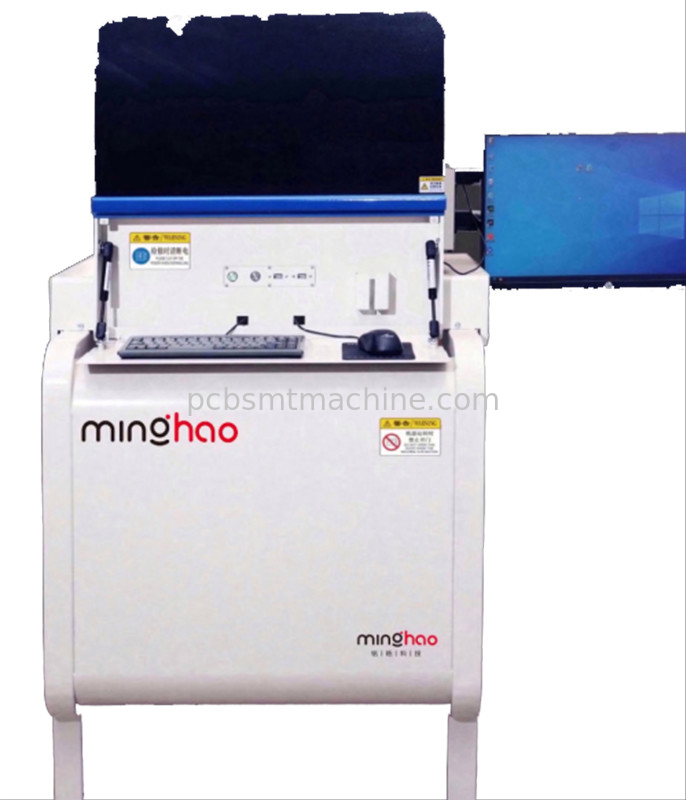

Offline AOI Machine Description MH500 Series Original and AI Vision Inspection for DIP Components

Product Overview
The MH500/MH500W Offline AOI (Automated Optical Inspection) system by Shenzhen Minghao Vision Technology delivers AI-driven defect detection for DIP (Dual In-line Package) component assembly. Utilizing a high-resolution industrial camera (12MP/28MP) and deep learning algorithms, it identifies missing, misaligned, reversed, or defective components with micron-level precision - all at a competitive price point that reduces quality control costs.

Key Features & Benefits

Why Choose MH500 Series?

✅ Cost-Effective Automation

50% lower operational cost vs. manual inspection

No production stoppage: In-line detection at 1.8m/min

✅ AI That Saves Time & Money

One-click programming: Trains on new components in minutes

Self-learning: Adapts to component variations (color, skew, text)

✅ Industry 4.0 Ready

MES/SPC integration: Real-time data export for traceability

Barcode scanning: Tracks defects to specific batches

✅ DIP-Specific Superiority

Detects black-on-black components and polarity reverses reliably

Handles warped boards without mechanical adjustments

Technical Specifications

Applications: Wave soldering lines, post-insertion QC, automotive/consumer electronics PCBAs.

Certifications: ISO, patents for AI algorithms, software copyrights.
