MH550 3D AOI AI-Powered Solder Component Inspection for Industrial SMT Lines – Affordable Machine

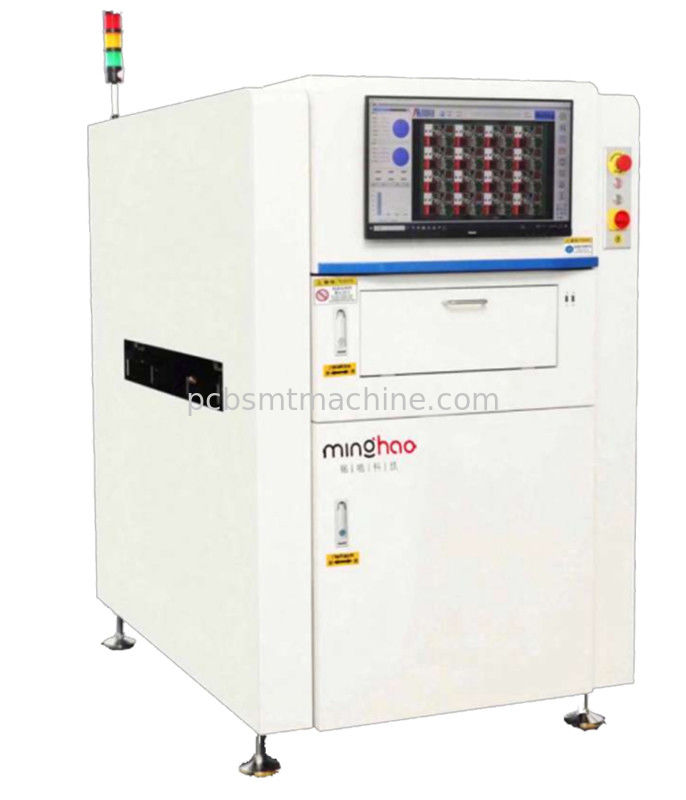

Product Description: MH550/MH550DH/MH550DL In-line PCBA 3D Optical Inspection Equipment

Manufacturer: Shenzhen Minghao Vision Technology Co., LTD

Overview

The MH550 series is an advanced 3D optical inspection system designed for high-precision detection of solder defects and component anomalies in PCBA (Printed Circuit Board Assembly) production lines. Leveraging structured light imaging and deep learning algorithms, it delivers sub-micron measurement accuracy (≤1µm repeatability) for superior defect identification with minimal false alarms.

Key Features

Technical Specifications

Core Advantages

Ultra-High Precision

1µm repeatability with dynamic adaptive calibration.Multi-angle projection (4/8-direction) eliminates shadows and distortions.

AI-Driven Efficiency

One-click programming: Auto-detection of trained components/solder joints.SPC alarms and real-time data export for traceability.

Robust Hardware

High-rigidity structure reduces vibration during high-speed operation.GPU-accelerated algorithms (CUDA, OpenMP) for rapid 3reconstruction.

Versatile Applications

Compatible with pre-/post-reflow inspection in SMT lines.                                                                                                                                  Supports bare boards and assembled devices.
