Name: SY3220-5MOZ-M5 5-Port Double Solenoid Valve DC24V with M5×0.8 Thread for Fuji NXT Pick-and-Place Machine
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: SY3220‑5MOZ‑M5
Price: 250.00 USD
Availability: InStock

Home > Products > SMT Spare Parts >

SY3220-5MOZ-M5 5-Port Double Solenoid Valve DC24V with M5×0.8 Thread for Fuji NXT Pick-and-Place Machine

5-port double solenoid Solenoid Valve

DC24V Pneumatic Solenoid Valve

M5×0.8 threaded port Fuji NXT Solenoid Valve

Place of Origin:

Japan

Brand Name:

SMC

Certification:

Model Number:

SY3220‑5MOZ‑M5

Request A Quote

Product Details

Highlight:

5-port double solenoid Solenoid Valve

DC24V Pneumatic Solenoid Valve

M5×0.8 threaded port Fuji NXT Solenoid Valve

Payment & Shipping Terms

Minimum Order Quantity

Price

1-500USD

Packaging Details

Carton box

Delivery Time

3-5 working days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

SY3220-5MOZ-M5 5-Port Double Solenoid Valve DC24V with M5×0.8 Thread for Fuji NXT Pick-and-Place Machine

Get Best Price

Mitsubishi Electric FR-S510WE-0.1K 0.1 kW Single-Phase VFD Inverter with RS-485 Communication for SMT Machines

Get Best Price

Baumer IFRM08P3707 M8 Flush Mount Inductive Proximity Sensor with PNP NO Output and Stainless Steel IP67 Housing

Get Best Price

High-strength wear-resistant alloy steel Nozzle Shaft with precision vacuum channel for Fuji NXT H24 H24S placement head

Get Best Price

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

Contact Now

Product Description

SY3220‑5MOZ‑M5 (H11224) Solenoid Valve | Pneumatic Solenoid Valve for Fuji NXT Pick‑and‑Place Machine

Product Description

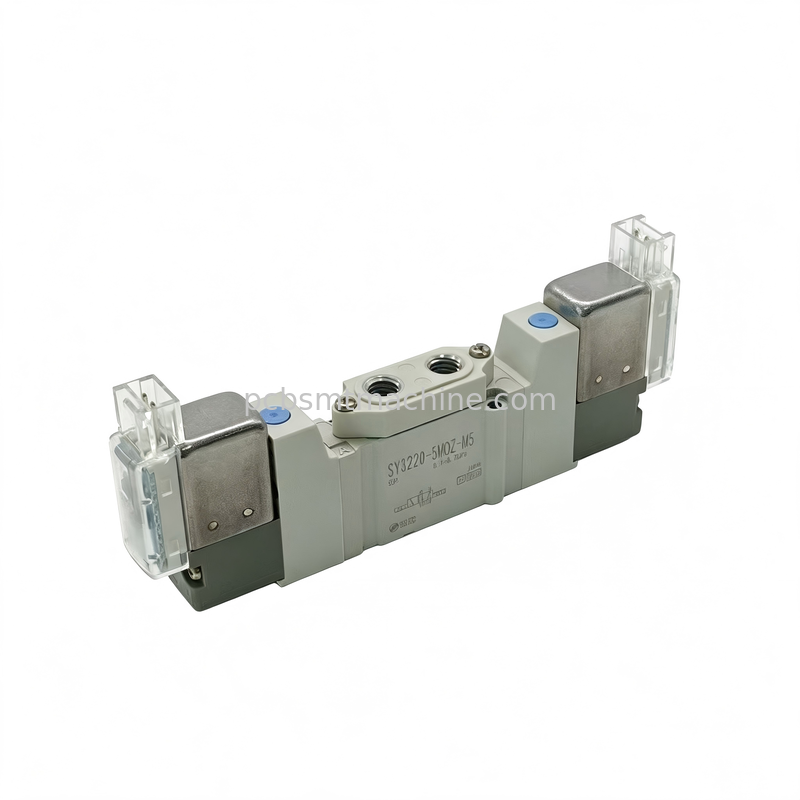

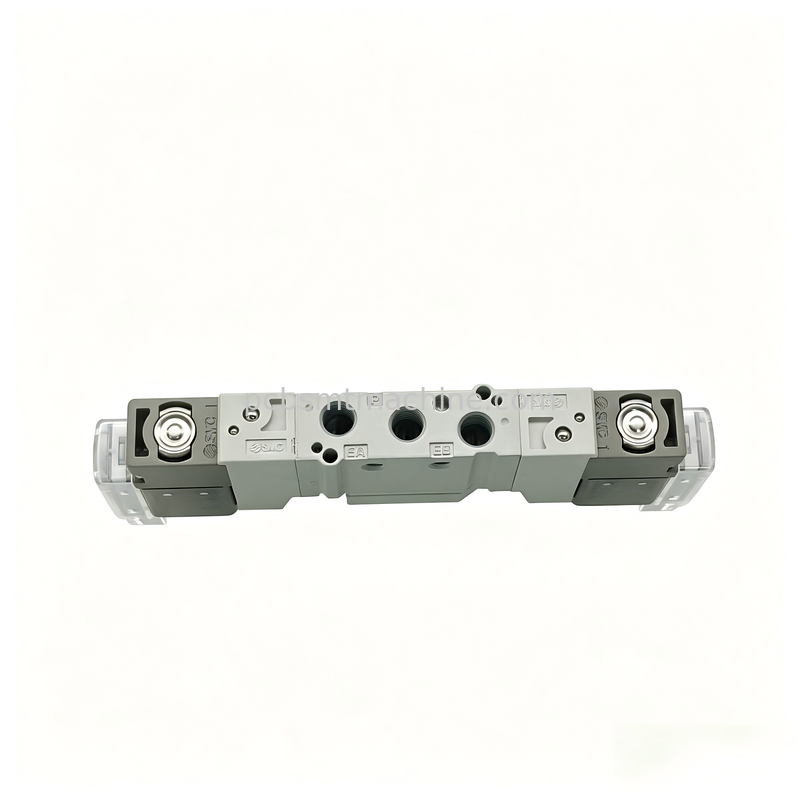

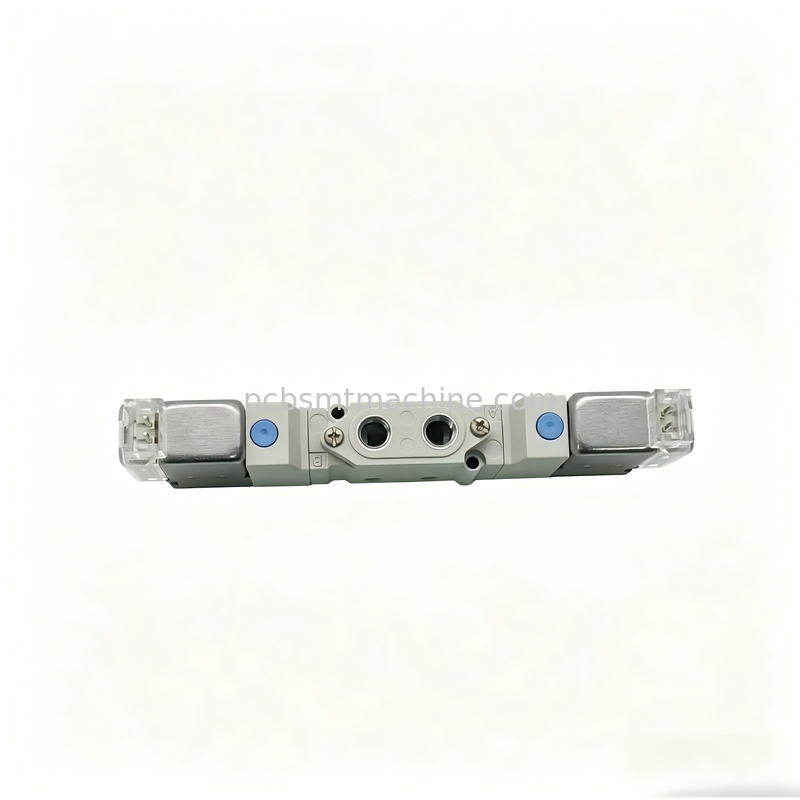

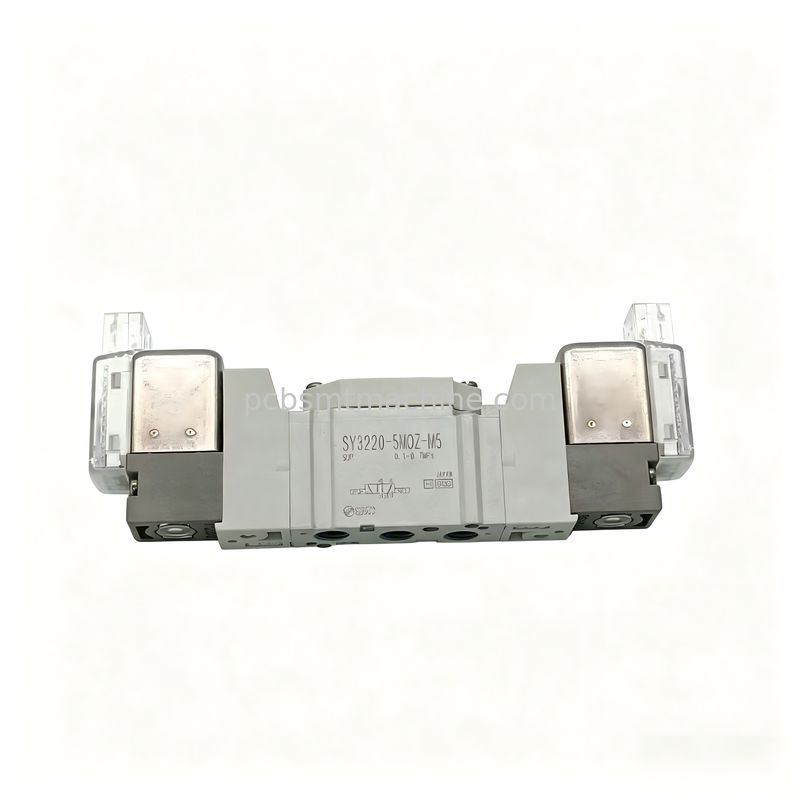

SY3220‑5MOZ‑M5 pneumatic solenoid valve, Fuji part number H11224, is a dedicated SMT spare part for Fuji NXT pick‑and‑place machines. This 5‑port double solenoid valve runs on DC24V with M5×0.8 threaded port. It controls pneumatic movements of the placement head and directly impacts machine performance and PCB assembly yield.

Note: SY3220‑5M0Z‑M5 is a common typo in the market. Adopting internal pilot structure, the valve delivers fast response and withstands high‑cycle operation in SMT production lines. Ideal for factory stocking and equipment maintenance replacement, it effectively cuts production losses caused by machine downtime.

Product Specifications

Item	Specification
SMC Model	SY3220‑5MOZ‑M5
Fuji Part No.	H11224
Product Name	5‑port double pneumatic solenoid valve
Working Voltage	DC24V
Port Size	M5×0.8 thread
Actuation Type	Double solenoid, 2‑position 5‑port, internal pilot
Applicable Machine	Fuji NXT pick‑and‑place machine
Application Position	Pneumatic control of placement‑head module
Working Fluid	Compressed air
Seal Material	NBR nitrile rubber
Common Typo Model	SY3220‑5M0Z‑M5

Product Features

Standard‑matched Compatibility
Fully complies with H11224 specification for Fuji NXT pick‑and‑place machine, direct drop‑in replacement without extra modification.
Fast & Responsive Performance
5‑port double‑solenoid design enables quick switching to prevent placement offset defects from delayed valve response.
Durable & Low‑leakage
Premium soft‑seal construction for excellent sealing performance. DC24V coil generates low heat to support long‑term non‑stop production.
Compact Miniature Body
Small footprint, perfectly fits limited inner‑space of placement‑head module.
Easy Installation & Maintenance
Standard M5 port allows quick swap during servicing to minimize machine‑stop duration.
Cost‑effective Spare Part
Perfect for inventory stocking and on‑site emergency repair, lowering procurement cost and production downtime losses.

Frequently Asked Questions

Q1: Which machines is this solenoid valve compatible with?

A: It is specially designed for Fuji NXT series pick‑and‑place machines, corresponding to part number H11224. Direct application on other‑brand equipment is not recommended.

Q2: What is SY3220‑5M0Z‑M5?

A: It is a widespread typo where digit zero replaces the letter O. It refers to the same H11224 solenoid valve as SY3220‑5MOZ‑M5.

Q3: What symptoms indicate valve replacement is required?

A: Abnormal nozzle movement, delayed pneumatic action of placement head, valve body air leakage, or machine pneumatic alarms. Replace the valve after confirming its failure through troubleshooting.

Q4: Are products tested before shipment?

A: Every unit undergoes pneumatic function testing prior to delivery to guarantee stable performance after installation.

Q5: Can I use it on other devices if voltage and port match?

A: Not recommended. Even with identical voltage and port size, mounting dimensions and control logic may still be incompatible. Please verify part number H11224 before placing orders.
