N610082558AA｜Panasonic NPM V3 16 Nozzle Head Coiled Spring Retractable Signal Wire Assembly

Product Introduction

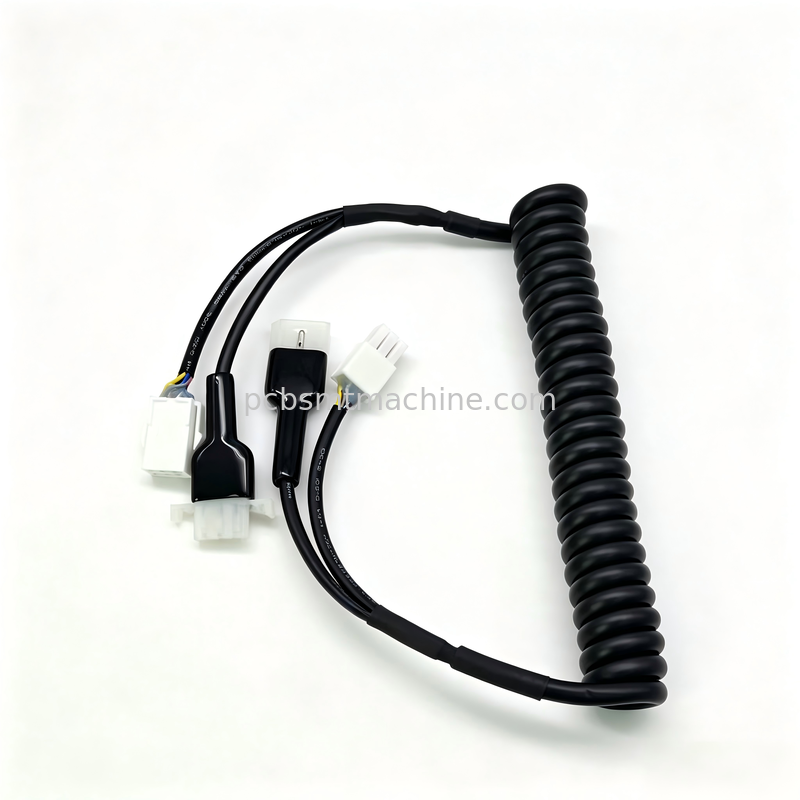

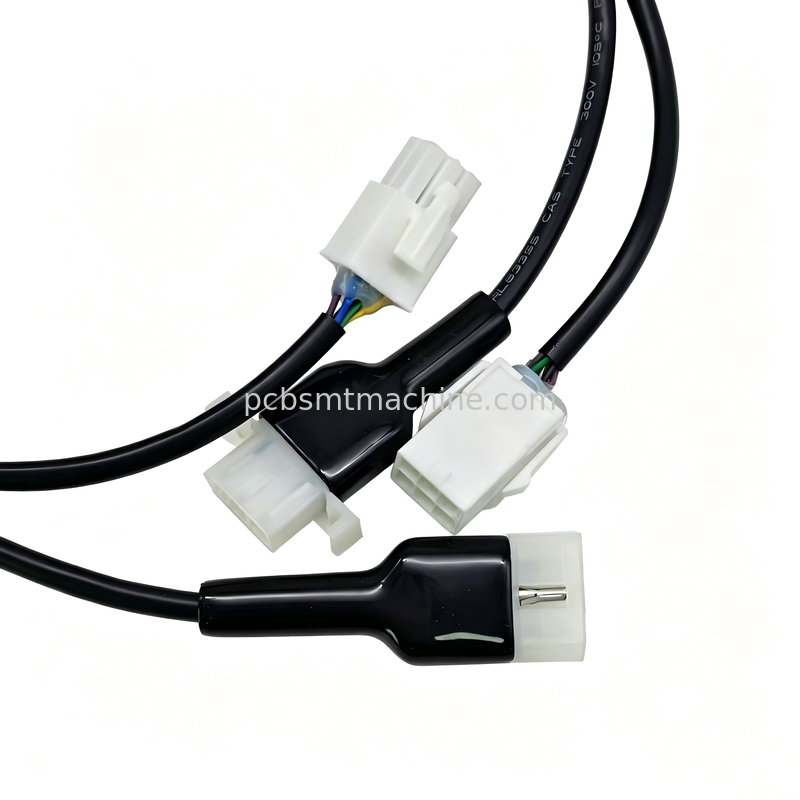

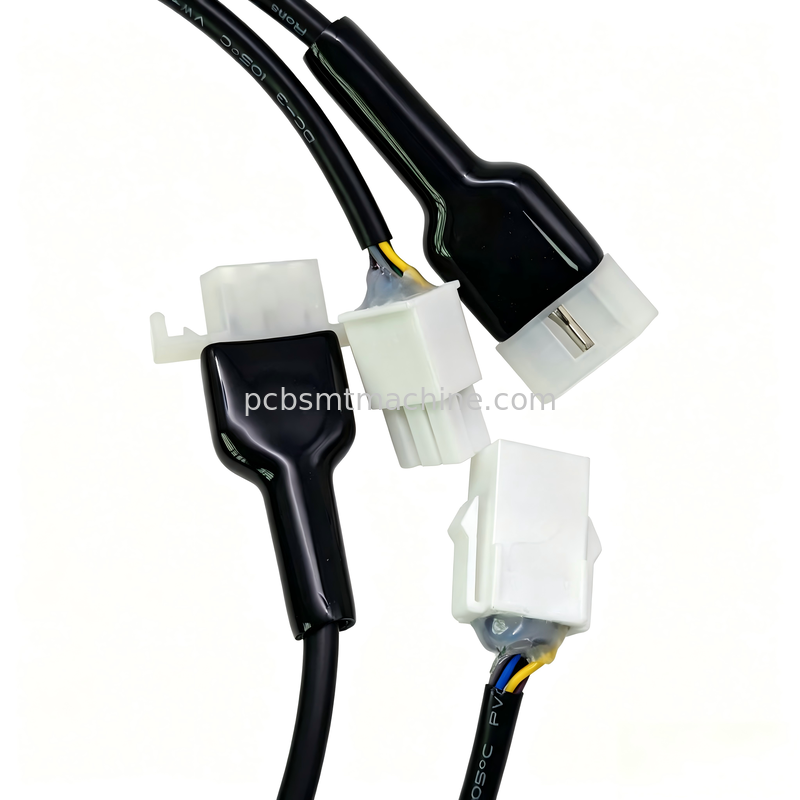

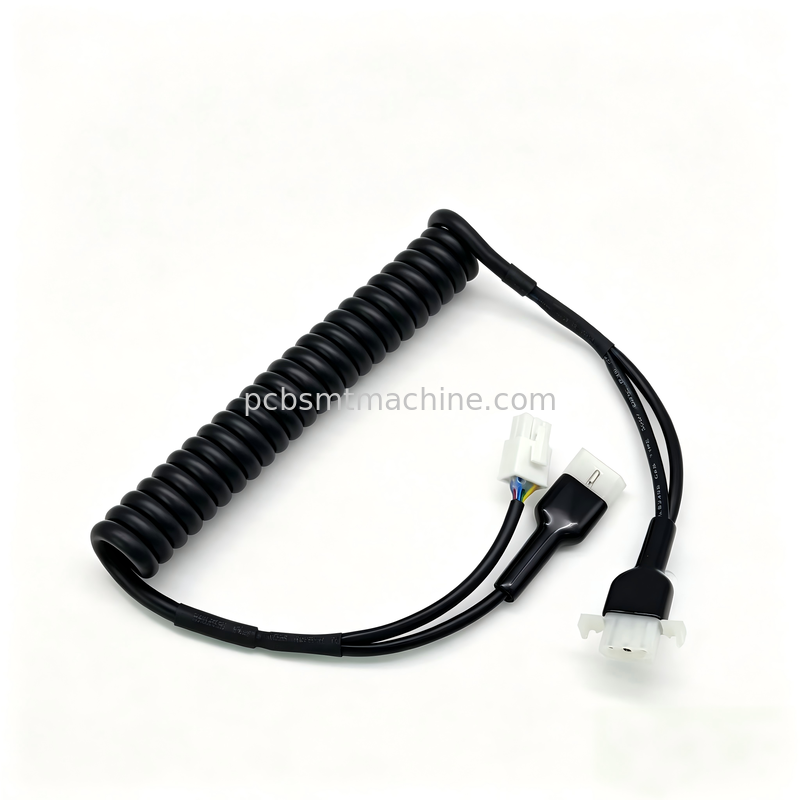

N610082558AA is a retractable coiled spring signal harness designed for Panasonic NPM V3 lightweight 16-nozzle placement heads. This multi-branch harness features multiple white plastic connectors and stretches/retracts in sync with the high-speed reciprocating motion of the placement head.

The assembly transmits signals for servo motors and position sensors to control Z-axis lift and θ-axis rotation, ensuring stable pick and placement precision. This harness must be used as a matched pair with N610082557AA, as the two harnesses have different connector pin definitions and cannot be interchanged.

Continuous stretching and bending over time can lead to micro-breakage of inner conductors, resulting in intermittent head communication alarms, origin loss, high component rejection rates, and unexpected machine stops. This is an essential spare part for NPM preventive maintenance.

Product Specifications

Item	Specification
Part Number	N610082558AA
Product Name	NPM V3 16 Nozzle Head Coiled Spring Retractable Signal Wire Assembly
Applicable Brand	Panasonic
Compatible Machines	NPM-D, NPM-TT, NPM-W, NPM-D3, NPM-D3A (Equipped with V3 16-nozzle head)
Matching Pair Part	N610082557AA (Non-interchangeable)
Cable Structure	Multi-core shielded wire, coiled spring retractable, multi-branch multi-connector
Rated Voltage	500V
Installation Type	Dynamic follow-up cable for NPM V3 16-nozzle placement head
Main Function	Servo & sensor signal transmission
Product Version	Compatible replacement spare
Application	SMT preventive maintenance & emergency breakdown repair
Quality Control	100% continuity & signal conduction test before shipment

Product Features & Supporting Services

Product Features

Coiled spring stretch-resistant cable adapts to large-range reciprocating motion of the placement head
Built-in shielding suppresses electromagnetic interference to guarantee stable signal transmission
Adopts the same specification multi-branch connectors as original standard for direct plug-and-play replacement
Recommended to replace together with N610082557AA to avoid secondary line downtime
Every harness undergoes full electrical inspection before delivery

Cooperation Process

Technical verification (Part No. & head model check)
Quotation & order confirmation
Pre-shipment QC + anti-static packaging
Cross-border delivery (Air / Sea / Express, wooden case optional for bulk orders)
After-sales technical support and warranty

Full-line Solution

We supply one-stop full range of consumable maintenance spare parts for Panasonic NPM mounters, including nozzles, filters, cylinders, servo motors, timing belts and more. We can customize annual preventive spare parts lists according to your machine configuration and support spare part supply for NPM placement head overhaul projects.

Frequently Asked Questions

Q: Does N610082558AA fit all NPM placement heads?

A: No. It only fits V3 lightweight 16-nozzle head, not for 8-nozzle, 12-nozzle or old V2 heads. Please confirm your head model before ordering.

Q: Can N610082558AA and N610082557AA be interchanged?

A: Not permitted. They have different pinout definitions. Wrong assembly will trigger communication error and may damage the head control board. We suggest replacing both harnesses at the same time.

Q: What faults indicate the harness needs to be replaced?

A: Intermittent head communication error, random origin loss, high component rejection rate and random machine halt. The machine returns normal after reboot, but the fault recurs after running.

Q: Do you keep stock? What is your lead time?

A: Compatible spare in stock. Goods can be shipped within 1-3 working days once the order is confirmed.

Q: Can I repair the old damaged cable?

A: It is only for short emergency use. Repeated stretching will lead to rapid re-failure. New replacement is recommended for mass-production SMT lines.

Q: What export packaging do you offer?

A: Standard package: anti-static bag + export carton. Wooden case reinforcement is optional for bulk orders.
