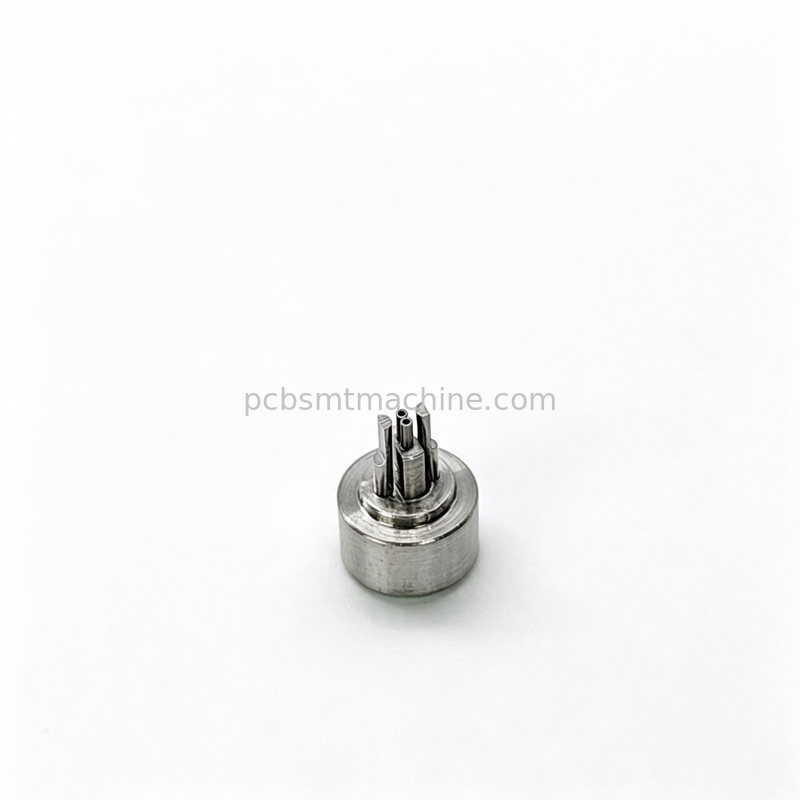

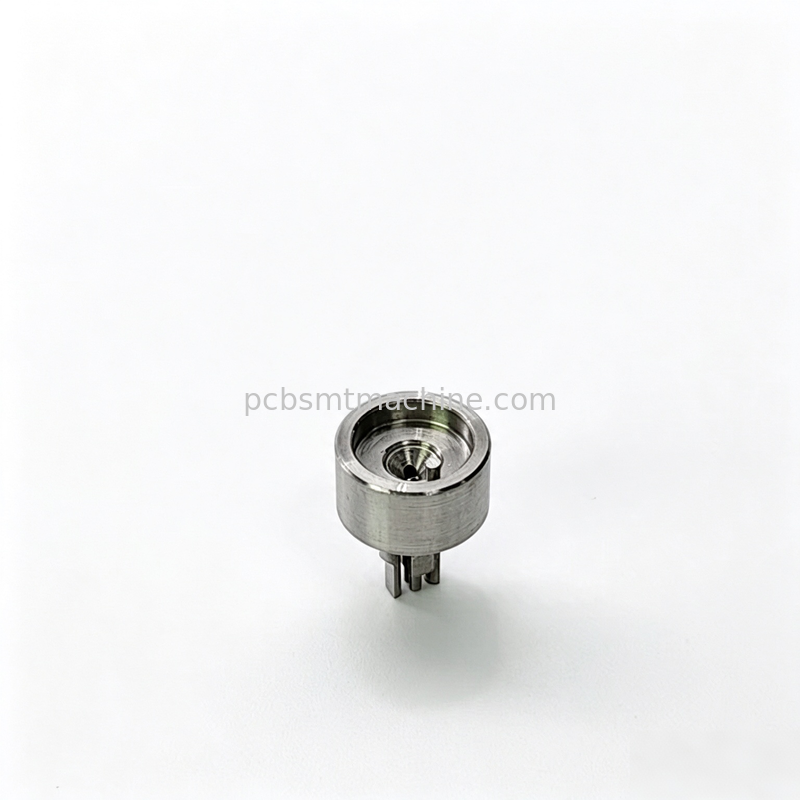

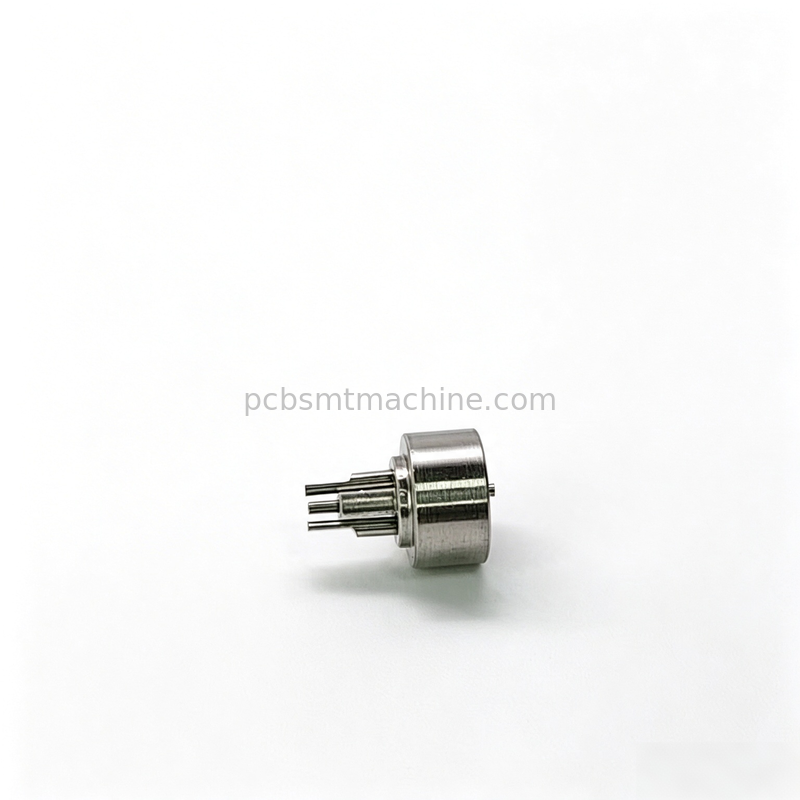

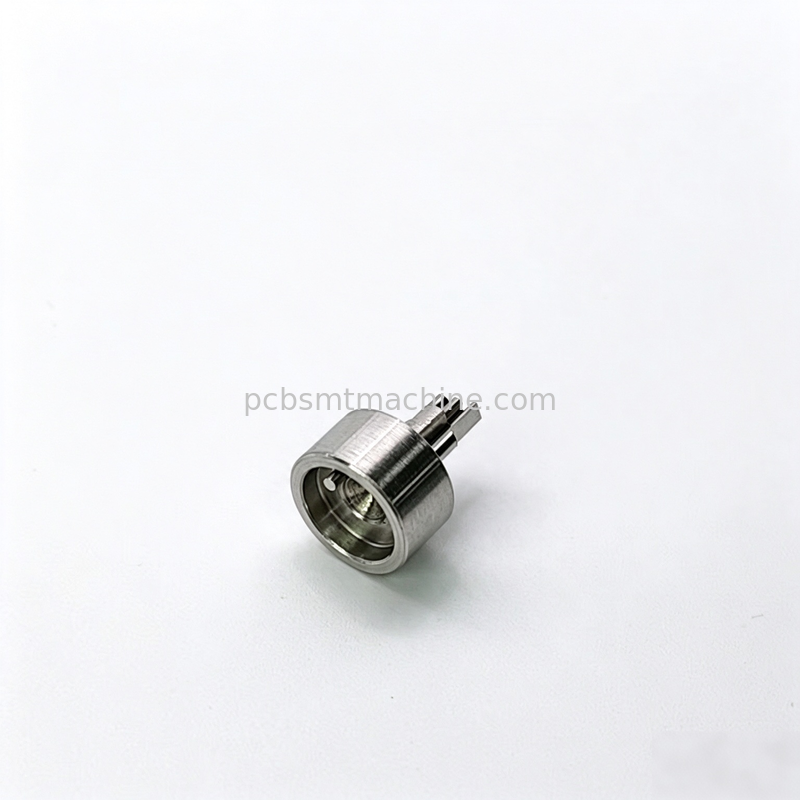

Name: Double Hole Double Column Dispensing Nozzle 0.7mm 0.4mm Hole Diameter P0.7 Pitch SMT Dispensing Nozzle for Panasonic
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: HDF-2D2S-0.7-0.4P0.7
Price: 50.00 USD
Availability: InStock

Home > Products > SMT Spare Parts >

Double Hole Double Column Dispensing Nozzle 0.7mm 0.4mm Hole Diameter P0.7 Pitch SMT Dispensing Nozzle for Panasonic

Double Hole Double Column Dispensing Nozzle

0.7mm 0.4mm Hole Diameter SMT Dispensing Nozzle

P0.7 Pitch Glue Dispensing Nozzle

Place of Origin:

China

Brand Name:

OEM

Certification:

Model Number:

HDF-2D2S-0.7-0.4P0.7

Request A Quote

Double Hole Double Column Dispensing Nozzle 0.7mm 0.4mm Hole Diameter P0.7 Pitch SMT Dispensing Nozzle for Panasonic

Product Details

Highlight:

Double Hole Double Column Dispensing Nozzle

0.7mm 0.4mm Hole Diameter SMT Dispensing Nozzle

P0.7 Pitch Glue Dispensing Nozzle

Payment & Shipping Terms

Minimum Order Quantity

Price

1-100USD

Packaging Details

Carton box

Delivery Time

3-5 working days

Payment Terms

L/C,D/A,D/P,T/T

1.3mm Orifice Ceramic Tip ESD Safe Fuji XPF Nozzle SMT Nozzle for Pick and Place Machines

Get Best Price

High Precision High Efficiency Low Maintenance Feeder Sprocket SMT Feeder Sprocket for Fuji NXT W08C 8mm Tape Feeder

Get Best Price

High Precision Replacement Guide Plate CNC Precision Machining Direct Interchangeable Tape Guide Plate for Panasonic SMT Feeder

Get Best Price

Panasonic AI Insertion Machine Spare Part N210166353AA

Get Best Price

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

Contact Now

Product Description

Product Overview

The HDF-2D2S-0.7-0.4P0.7 is a double-hole, double-column dispensing nozzle designed for Panasonic SMT dispensing units. It delivers consistent, repeatable dots for solder paste, adhesive, flux, and underfill on high-density PCBA and FPC assemblies.

Manufactured from hardened wear-resistant alloy through precision CNC machining, the nozzle reduces dot deviation, glue bleeding, and material waste. Its optimized flow path minimizes residue, simplifies cleaning, and cuts downtime — delivering high precision, high efficiency, and low maintenance for SMT mass production.

Technical Specifications

Model	HDF-2D2S-0.7-0.4P0.7
Structure	Double Hole & Double Column
Hole Diameter	0.7 mm / 0.4 mm
Pitch	P0.7
Compatible Unit	Panasonic SMT Dispensing Unit
Applicable Fluid	Solder paste, adhesive, flux, underfill encapsulant
Material	Hardened wear-resistant alloy
Application	PCBA, FPC, microchip bonding, high-density PCB dispensing
Features	High precision, stable flow, easy cleaning, wear-resistant
Surface Treatment	Polished anti-adhesion finish

Features & Solution

Core Advantages

Uniform dot size that lowers rework rates.
Smooth channel resists clogging for long-hour continuous production.
Anti-stick polished surface for easy cleaning and reduced maintenance.
Direct replacement for compatible Panasonic dispenser spare parts — no modification required.

Cooperation Process

Compatibility check after receiving your requirements.
Samples available for testing.
Strict dimension and appearance inspection before shipment.
Global delivery with technical support.

SMT Supporting Solution

We supply the full HDF series of dispensing nozzles and other Panasonic dispenser spare parts, with long-term supply support for EMS factories.

Frequently Asked Questions

Q1: Can it directly replace Panasonic original spare parts?

A1: Yes, it is a direct fit. Please confirm your dispensing unit before ordering.

Q2: What fluids are suitable?

A2: Solder paste, adhesive, flux, and low- to medium-viscosity underfill. Test first for abrasive fluids.

Q3: How can I extend the service life?

A3: Clean daily with a proper solvent, avoid hard scratching, and maintain stable air pressure.

Q4: Are other HDF sizes available?

A4: Yes. Send us the part number or drawing for a quotation.

Q5: What about samples and MOQ?

A5: Samples are supported. Bulk discounts are available for regular buyers.

Q6: What should I do if dispensing is unstable after installation?

A6: Check air pressure, fluid viscosity, and nozzle seating. Clean if clogged, and contact us for remote support.
