Double Hole Double Stem Dispensing Nozzle with 0.8 mm Hole Pitch and Φ0.7 mm / Φ0.4 mm Orifice for Panasonic HDF Glue Nozzle SMT Dispensing

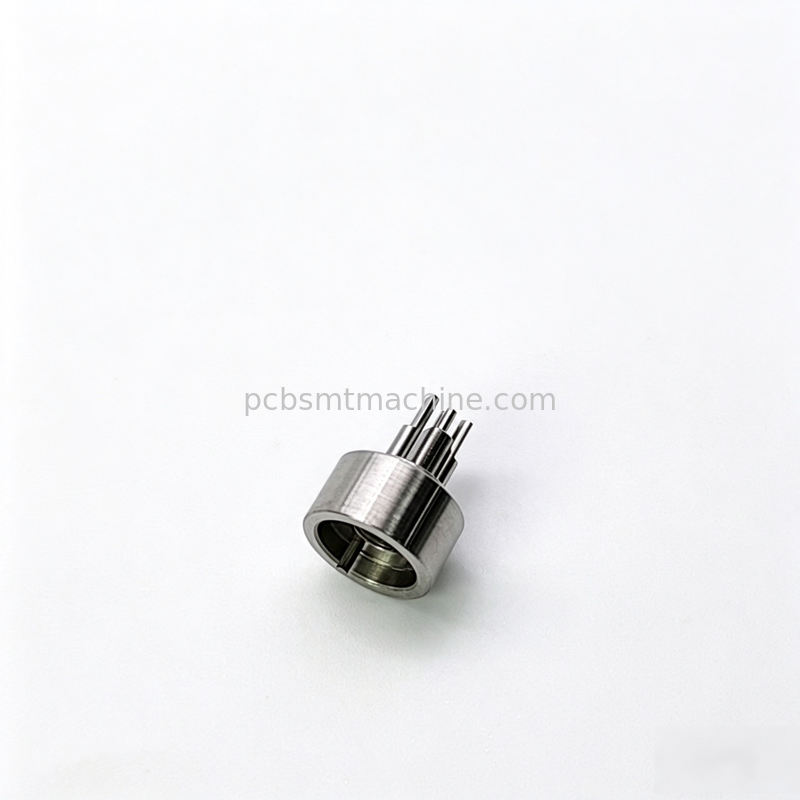

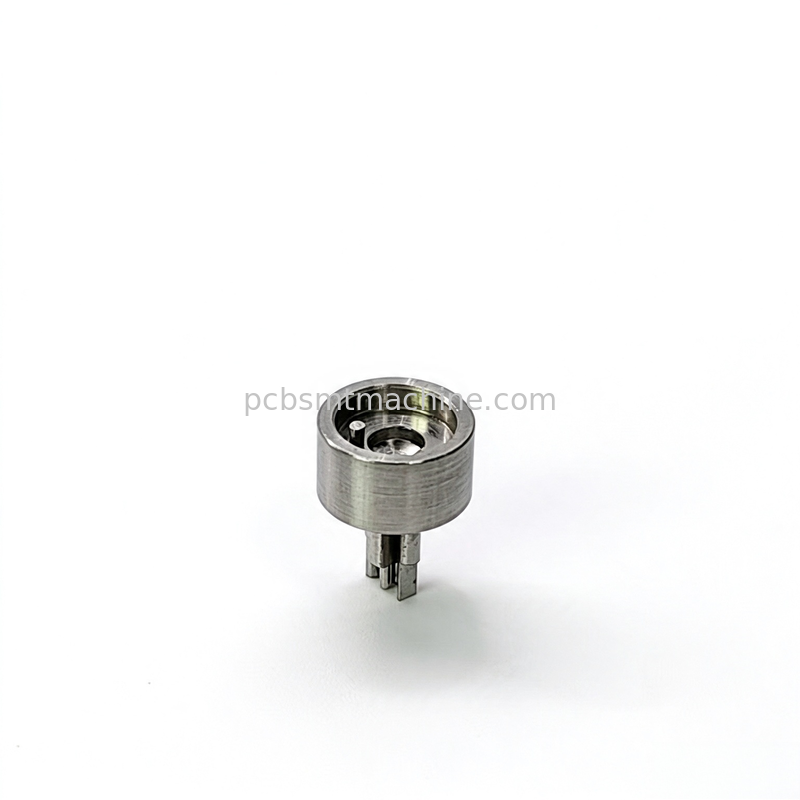

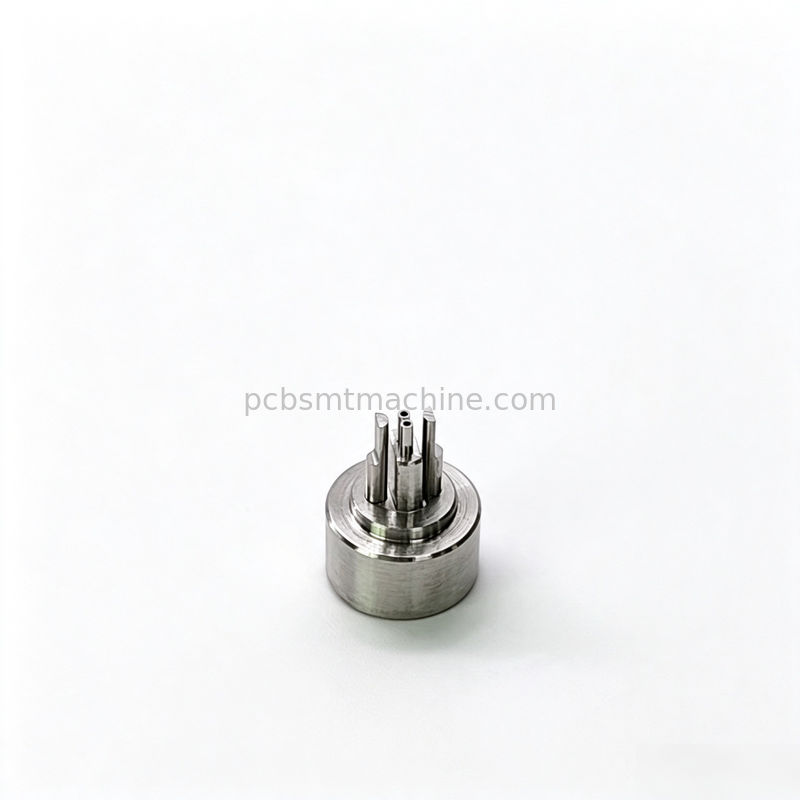

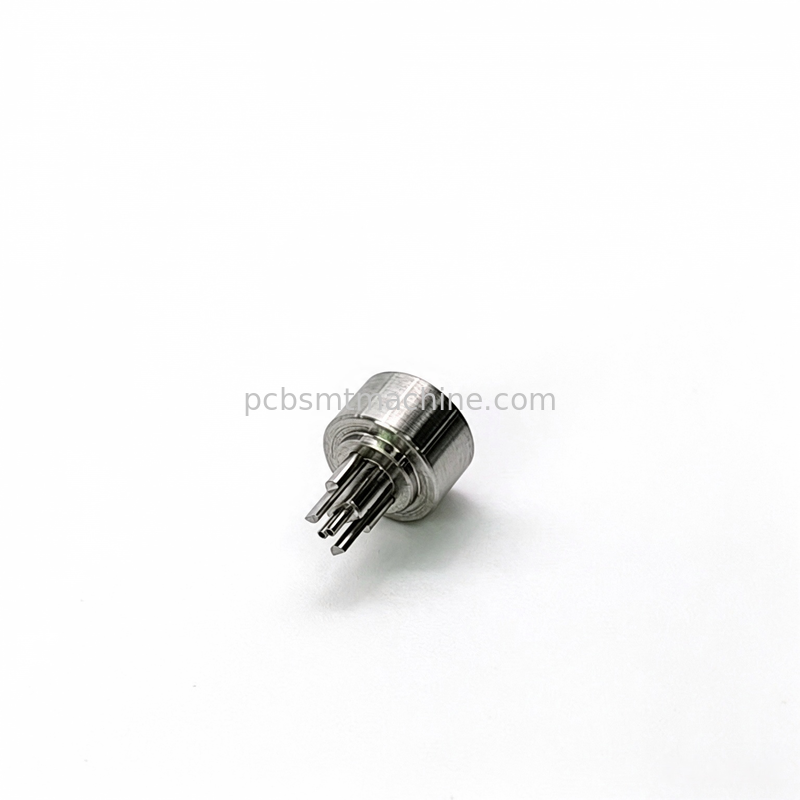

The HDF-2D2S-0.7-0.4P0.8 dispensing nozzle (OEM PN: 104305971104) is a dedicated double-hole, double-stem glue nozzle designed for the Panasonic HDF screw valve dispensing unit. It is compatible with Panasonic NPM-W, NPM-W2, and NPM-W2S mounters fitted with HDF dispensing modules.

This 2D2S nozzle features two different orifice sizes — Φ0.7 mm and Φ0.4 mm — with a 0.8 mm hole pitch. It is used for 1608 SMD chip adhesive dispensing on PCBs in SMT processes, depositing two glue dots in a single dispensing stroke to fix components for wave soldering.

Manufactured to original dimension specifications, this nozzle is a drop-in replacement spare part requiring no modification for installation. It is suitable for SMT production line maintenance, nozzle change, and spare stock for electronics assembly manufacturers.

• Dual orifice design: Φ0.7 mm + Φ0.4 mm with 0.8 mm pitch, delivering two glue dots in one stroke for 1608 component dispensing.
• Precision CNC machining: Orifice and inner flow channel are machined to tight tolerances with a smooth surface, helping reduce glue clogging, stringing, tailing, and uneven glue dots.
• Strict dimension tolerance: Direct plug-and-play compatibility with the Panasonic HDF dispenser head.
• Stable glue output consistency: Helps lower dispensing defects on SMT PCB assembly lines.
• Wide HDF series availability: We also supply other HDF series dispensing nozzles, including 1D1S and 2D2S models with different pitches. Send us your part numbers for compatibility confirmation.
