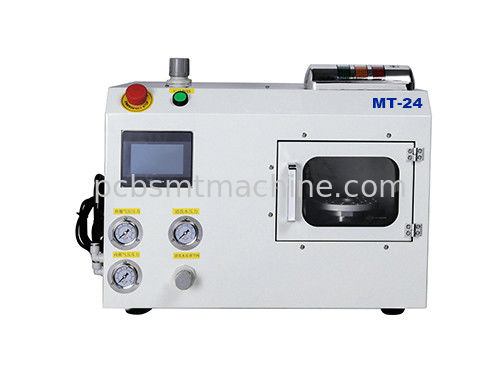

Automatic Compressed Air Blow Dry SMT Nozzle Cleaning Machine AC220V MT-24

Automatic Compressed Air Blow Dry SMT Nozzle Cleaning Machine AC220V MT-24

SMT nozzle cleaning machine AC220V

Air Blow Dry SMT Nozzle Cleaning Machine

Air Blow Dry smt nozzle cleaner

Place of Origin:

China

Brand Name:

INFINITE™

Model Number:

MT-24

Contact Us
Request A Quote
Product Details
Features:
Adopts Jet Cleaning Method
Application:
Nozzle Cleaner
Model:
MT-24
Brand:
INFINITE™
Compatibility:
Suitable For All Kinds Of Placement Machine Nozzles
Condition:
New
Functionality:
For Industrial Use
Power:
Power Supply: AC220V, 1A / Air Supply: 0.5~0.7Mpa
Packaging:
Wooden Box
Lead Time:
15 Days
Highlight:

SMT nozzle cleaning machine AC220V

,

Air Blow Dry SMT Nozzle Cleaning Machine

,

Air Blow Dry smt nozzle cleaner

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
crate
Payment Terms
L/C, D/A, D/P, T/T
Product Description

MT-24 Automatic compressed air bow-dry SMT nozzle cleaning machine is a machine that can clean 24 nozzles at the same time.  MT-24 cleaning machine adopts a multi-nozzle jet cleaning method to clean hardened solder paste clogged on the nozzle. The MT-24 machine has a fully automatic cleaning functionality and capable of cleaning 24 nozzles each load. This machine is compatible to use to all types of placement machine nozzles (different types of nozzles use different fixture trays). This nozzle cleaning machine is designed to provide a shorter cleaning time and giving a high cleaning effect. MT-24 Automatic compressed air bow-dry SMT nozzle cleaning machine is simple and easy to operate.



Machine features:



1. Cleaning 24 nozzles at a time, with short cleaning time and high efficiency.

2. Instead of traditional manual cleaning, solve the problem of ultrasonic cleaning, and reduce the occurrence of patch throwing.

3. Atomized water flow supersonic jet cleaning, completely solve the dirt and impurities that cannot be cleaned by ultrasonic.

4. It will not be unclean due to the smaller and smaller nozzle aperture.

5. The cleaning is more thorough, which directly extends the life of the suction nozzle, and the cleaning rate is over 99%.

6. A special cover plate protects the surface coating and reflector of the nozzle.

7. Clean with pure water or deionized water, no cleaning agent is used.

8. The operation is simple and convenient.

9. Suitable for all kinds of placement machine nozzles.



Machine specifications:



MT-24 specification



Air Supply: 0.5~0.7Mpa

Power supply: AC220V, 1A

Cleaning fluid: Purified water or DI water

Cleaning time: 3~6min

Drying time: 2~3min

Injection pressure: ≤0.55Mpa

Cleaning fluid consumption: ≤150cc/hour

Cleaning nozzle range: Minimum 01005~Maximum inner diameter ¢2.0mm

Fixture specification: Small nozzle 24 holes/large nozzle 12 holes

Machine size: L665*W555*H475(mm)

Machine weight: 30KG



Nozzle cleaning machine MT-24
