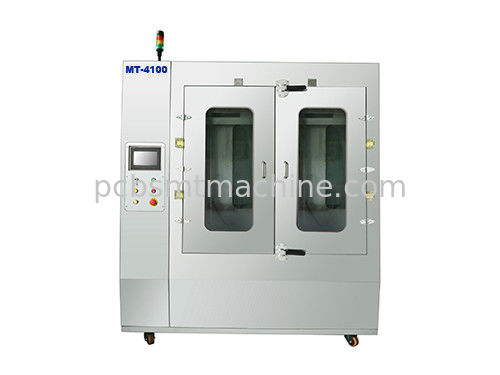

Highly Intelligent Pcb Smt Equipment For Screen Developing MT-4100

MT-4100 automatic screen developing machine for residual photosensitive adhesive after screen film exposure or laser plate making is a machine specially designed for producing perfect development quality. This machine used for automatic washing and releasing of residual photosensitive adhesive after screen film exposure or laser plate making. MT-4100 automatic screen developing machine is a highly intelligent machine that can be used for precision screens, thin-film, and thick film screens. The machine automatically sprays the screen printing screen after double-sided flushing, so that the printed graphics can appear automatically; the front and rear double spray bars are used for uniform spraying; the spray pressure and time can be adjusted to achieve perfect development.

Machine features:

1. High-quality electric hydraulic pump, the pressure can be adjusted freely, to achieve high-pressure jet washing and development.
2. The whole structure is made of stainless steel, which is resistant to acid and alkali corrosion and durable.
3. One-button operation, the development or stripping is automatically completed at one time according to the set program.
4. Equipped with a liquid level control mechanism, it will automatically add when the water level is low, and automatically stop when the water level is reached.
5. Equipped with an anti-dry pumping control system to automatically protect the hydraulic pump when the water volume is insufficient.
6. The machine is completely sealed by spraying and developing or stripping, keeping the workshop environment clean and tidy.
7. The developing water or release liquid can be reused, saving water and reducing emissions.

Modular controller, easy to repair and maintain.

Different procedures correspond to a thin film, thick film development, and release.

Machine specifications:

MT-4100 specification

Maximum screen size: L1000xW1000xH40(mm)

Tank capacity: 120L

Development/release time: 1~4min

Drying time: 1~2min

Air flow volume: 800~1000L/min

Gas source: 0.5~0.7Mpa

Exhaust port size: Φ125 × H30 (mm)

Filtering system: 20um

Gas source: 0.5~0.7Mpa

Power supply: AC380V, 50HZ, 4KW

Machine size: L1750xW1550xH2000(mm)

Machine weight: 780KG
