Two Fluid Cleaning SMT Cleaning Equipment For Mobile Phone Camera Module MT-MP800

Two Fluid Cleaning SMT Cleaning Equipment For Mobile Phone Camera Module MT-MP800

Two Fluid Cleaning SMT Cleaning Equipment

Two Fluid Cleaning smt cleaning system

Two Fluid Cleaning smt cleaner

Place of Origin:

China

Brand Name:

INFINITE™

Model Number:

MT-MP800

Contact Us
Request A Quote
Product Details
Features:
Special Cleaning Machine For Dust And Impurities On The Surface Of Camera Module Products
Application:
Mobile Phone Camera Module Cleaner
Model:
MT-MP800
Brand:
INFINITE™
Condition:
New
Functionality:
For Industrial Use
Power:
Power Supply: AC380V 50HZ / Air Supply: Pressure: 0.45-0.7Mpa; Flow: >30m³/H
Packaging:
Wooden Box
Lead Time:
15 Days
Highlight:

Two Fluid Cleaning SMT Cleaning Equipment

,

Two Fluid Cleaning smt cleaning system

,

Two Fluid Cleaning smt cleaner

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
crate
Payment Terms
L/C, D/A, D/P, T/T
Product Description

MT-MP800 professional mobile phone camera module cleaning machine is a special machine designed to eliminate dust and impurities on the surface of camera module products. This machine is suitable for use for mobile phone camera products, wafer, CMOS, Holder, and dust removal of other surfaces. The machine's mirror stainless steel integrated enclosed body design can be operated and suitable for use in dust-free workshops. MT-MP800 machine is equipped with a PLC automatic control which makes the operation convenient and user-friendly. MT-MP800 is capable of providing complete cleaning results using ultra-pure water and meets RoHS standards.





Details



Machine introduction:



MT-MP800 is a professional mobile phone camera module cleaning machine, used for mobile phone camera products, wafer, CMOS, Holder, and other surface dust cleaning.



Features of the machine:



1. Special cleaning machine for dust and impurities on the surface of camera module products;

2. Mirror stainless steel integrated enclosed body, no pollution to the working environment, suitable for use in dust-free workshops;

3. Replaceable cleaning plate for cleaning more A variety of products, the cleaning plate is customized according to the product;

4. PLC automatic control, convenient and quick operation;

5. Transparent explosion-proof front door, safe operation, easy to observe;

6. The whole system instrument display, monitoring the cleaning status at any time;

7. Using two-fluid cleaning, High cleaning accuracy, zero damage to the product, and minimal pure water consumption;

8. Rotary spray bar to avoid secondary pollution of the product;

9. Equipped with static elimination device and cavity wall heating device to assist cleaning to achieve the best effect;

10. Equipped with a two-stage air filtration system, the compressed air meets the ISO8573.1 standard;

11. The body is compact and takes up a small area;

12. It is completely cleaned with ultra-pure water and meets RoHS standards.



Machine specifications:



MT-MP800 specifications



Appearance size of equipment: 880mm(L)×960mm(W)×1880mm(H)

Cleaning plate specifications: Customized (cleaning disc diameter <ø550mm)

Cleaning method: Two-fluid cleaning

Drying method: High-speed centrifugal drying

Power supply: AC380V 50HZ

Total power: 7KW

Power consumption: When cleaning: 3.5kw/h

Transmission Horsepower: 3HP

Environmental filtering method: 0.3μm; 99.999%

Air filtration method: 1μm×1; 0.01μm×1

Centrifugal speed: 100-1500RPM

Pure water consumption: 0-7L/Min

Gas consumption: 10-30m³/H

Cleaning pressure: Liquid pressure: 3-8Kgf/cm², air pressure: 0.2-0.5Mpa

DI water supply: Flow rate: >7LPM resistivity: >17MΩ

Air supply: Pressure: 0.45-0.7Mpa; Flow: >30m³/H (cleanliness meets cleaning requirements)

Pure water inlet diameter: ø12mm hose or PT1/2″ internal thread

Air inlet diameter: ø12mm trachea

Drainage outlet diameter: PT 1″ internal thread

Exhaust port diameter: 4″×2 (enhanced ventilation is required, wind speed is greater than 3m/sec)

Machine net weight: 450KG

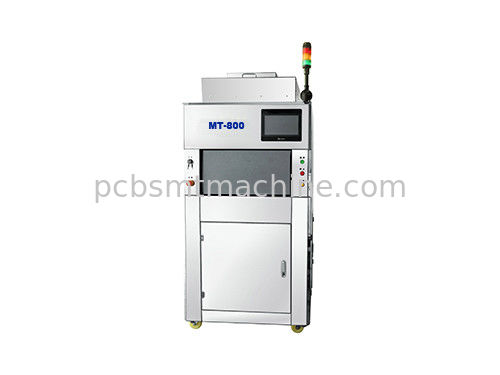

Mobile phone camera module cleaning machine MT-MP800
