Place of Origin:
China
Brand Name:
OMRON
Model Number:
InSPIre-630

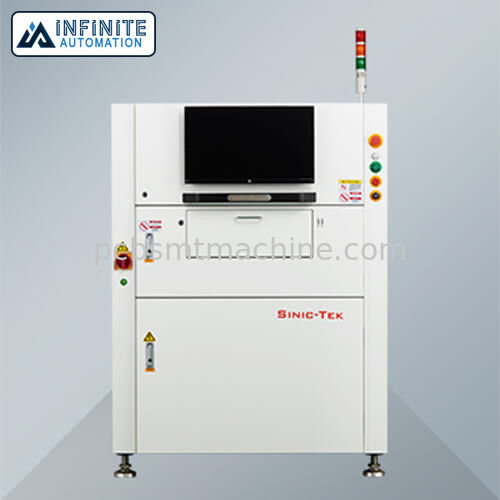

Sinic Tek 3D In-Line Automatic SPI Machine In SMT Original And Used
SinicTek 3D Inline SPI InSPIre-630, Original and Used Automatic Solder Paste Inspection Machine
Infinite Automation offer's a wide range of SMT production automation machines and equipment. We offer fully reconditioned SMT machines. Among our offered SMT machines are pre-owned 3D Solder Paste Inspection Machines. One of our featured machines is the SinicTek 3D In-line SPI InSPIre-630. SinicTek 3D Inline SPI InSPIre-630 has programmable phase contour modulation measurement techniques(PSLM PMP). This full 3D SPI can detect shift, excessive solder, insufficient solder, offset, deformed shape, etc. SinicTek 3D Inline SPI InSPIre-630 supports Windows 7 Professional (64 bit).
SinicTek 3D In line SPI InSPIre-630
3D SPI
PCB size:630 x550 mm
Dimension:850x1430x1500mm
weight:850KG
| TECHNICAL PARAMETERS: |
| Inspection Principle: Programmable phase contour modulation measurement techniques(PSLM PMP) |
| Inspection type: Volume, area, height, XY offset, shape, etc. |
| Defect Types: shift, excessive solder, insufficient solder, offset, deformed shape, etc. |
| Smallest component size: 01005. |
| Accuracy: XY=10 um,Height = 0.37 um. |
| Repeatability: height:≤1um (4 Sigma); volume/acreage:<1%(4 Sigma). |
| Maximum Loading PCB Size(X*Y):630x550mm. |
| Inspection Speed: 0.35 SEC/FOV. |
| Fiducial Detection Time: 0.3sec/piece. |
| Maximum detection height:±450um(±1200umOption). |
| RGB Tune patented technology. |
| D-lighting patented technology. |
| Dynamic and static warpage compensation. |
| Barcode function with traceability. |
| Closed-loop function to printers |
| Bad mark transfer function to mounter. |
| Access IMS system functions. |
| Operating System Support: Windows 7 Professional (64 bit). |
| Five-minute programming, one-click operation. |
| SPC process control. |
