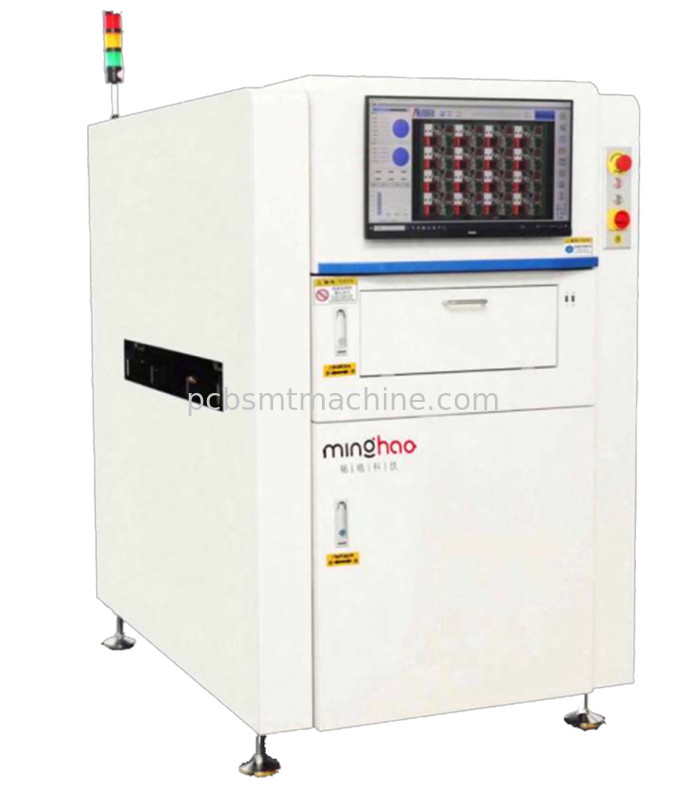

Name: MH310/MH310DH/310DL 3D SPI Machine Original and Technology for Accurate Solder Paste Inspection in Industrial SMT Settings
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: MH310/MH310DH/310DL
Availability: InStock

Home > products > SMT AOI Machine >

MH310/MH310DH/310DL 3D SPI Machine Original and Technology for Accurate Solder Paste Inspection in Industrial SMT Settings

Industrial SMT SPI Machine

3D SPI Machine

Accurate Solder Paste Inspection SPI Machine

Place of Origin:

China

Brand Name:

Minghao

Model Number:

MH310/MH310DH/310DL

Document:

MH310-MH310DH-MH310DL-1_com...ed.pdf

Request A Quote

MH310/MH310DH/310DL 3D SPI Machine Original and Technology for Accurate Solder Paste Inspection in Industrial SMT Settings

Product Details

Machine Description:

3D SPI

Model:

MH310/MH310DH/310DL

Condition:

Original And New

Functionality:

Industrial Use (SMT)

Packaging:

Wooden Box

Lead Time:

30 To 40 Working Days

Payment:

TT, PAYPAL, L/C, D/A, D/P, Western Union, MoneyGram

Highlight:

Industrial SMT SPI Machine

3D SPI Machine

Accurate Solder Paste Inspection SPI Machine

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

USD

Packaging Details

Wooden Box

Delivery Time

1 to 5 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability

10 units

Offline AOI Machine Description MH500 Series Original and AI Vision Inspection for DIP Components

Get Best Price

MH310/MH310DH/310DL 3D SPI Machine Original and Technology for Accurate Solder Paste Inspection in Industrial SMT Settings

Get Best Price

Infitek LED Light Strip X-Ray Laser Blind Typing Equipment

Get Best Price

Sinic Tek SMT AOI Machine Automatic Solder Paste Inspection Machine

Get Best Price

(86)-13823274872

rosy@topsmtsupply.com

86-755-23115005

Contact Now

Product Description

Product Description: MH310 Series 3D Solder Paste Inspection (SPI) Machine

Manufacturer: Shenzhen Minghao Vision Technology Co., Ltd.

The MH310 Series is a high-precision, 3D optical inspection system designed for real-time detection of solder paste defects in SMT (Surface Mount Technology) production lines. Utilizing phase modulation contour measurement (PMP) technology, it ensures micron-level accuracy (0.37µm resolution) while maintaining high-speed performance. The system supports closed-loop feedback with printers, SPC data analysis, and multi-machine interoperability for Industry 4.0 smart manufacturing.

Key Features & Advantages

Feature	Benefit
Phase Modulation Contour (PMP) Technology	Achieves 3D measurement with 0.37µm resolution, detecting defects like insufficient/excessive solder, misalignment, and bridging.
Multi-Head Imaging	Simultaneous multi-angle inspection improves speed vs. traditional single-head SPI.
Far-Center Lens Static Compensation	Eliminates errors caused by FPC (flexible PCB) warping without Z-axis adjustment.
Printer Closed-Loop Control	Automatically sends stencil cleaning/alignment commands to printers to improve yield.
SPC & MES Integration	Real-time statistical process control (SPC) and compatibility with factory MES systems.
BadMark Sharing	Skips defective boards in mounters, boosting efficiency.

Technical Specifications (MH310/MH310DH/MH310DL Models)

Parameter	MH310	MH310DH	MH310DL
Inspection Area	50×50mm to 510×460mm	50×50mm to 510×600mm	50×50mm to 1200×460mm
Thickness Range	0.5mm–6mm	0.5mm–6mm	0.5mm–6mm
Component Height	Top/Bottom: ±10mm	Top: +10mm, Bottom: +40mm	Top: +40mm, Bottom: +40mm
Light Source	RGB-W 4-color integral light	Customizable multi-directional lighting	High-speed industrial camera
Detection Speed	Up to 900Kx (customizable)	Optimized for dual-head configurations	Large-area scanning

Applications

Post-Printing Inspection: Installed after solder paste printers in SMT lines.

Defect Types: Measures volume, height, misalignment, bridging, and solder splatter.

Industry 4.0: Supports data traceability, multi-machine control (1 operator:4 machines), and AI-driven analytics.

Certifications & Compliance

Patents for PMP technology, software copyrights, and ISO quality management certifications.

Target Industries: PCB assembly, automotive electronics, consumer electronics, and medical device manufacturing.
