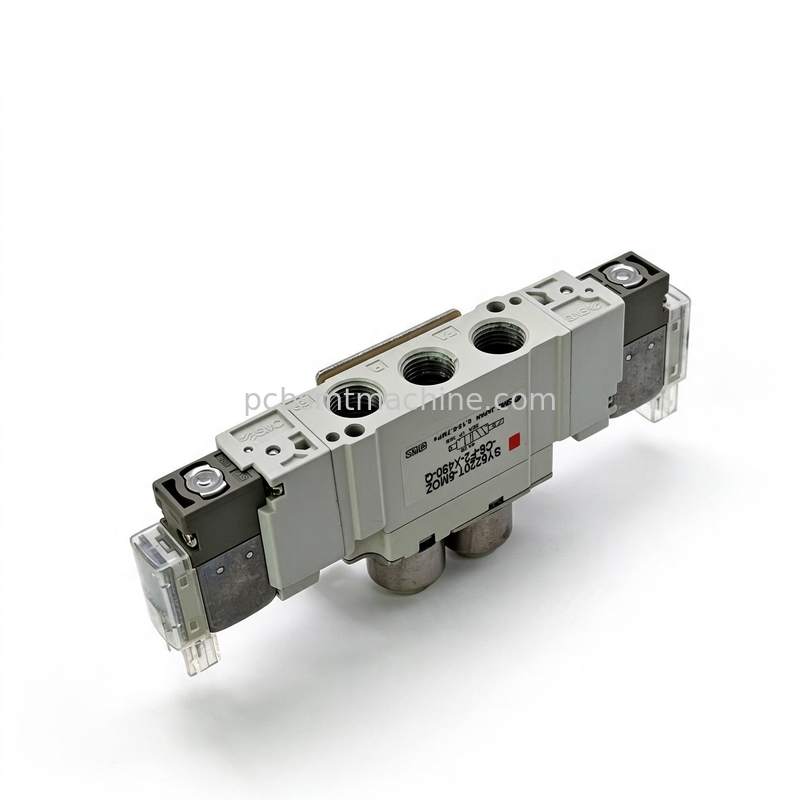

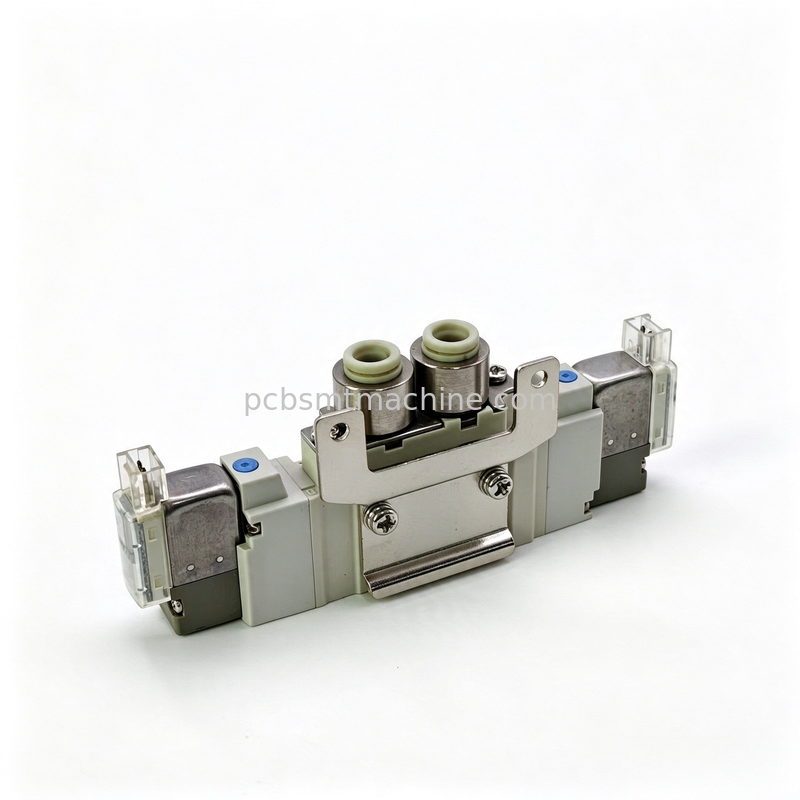

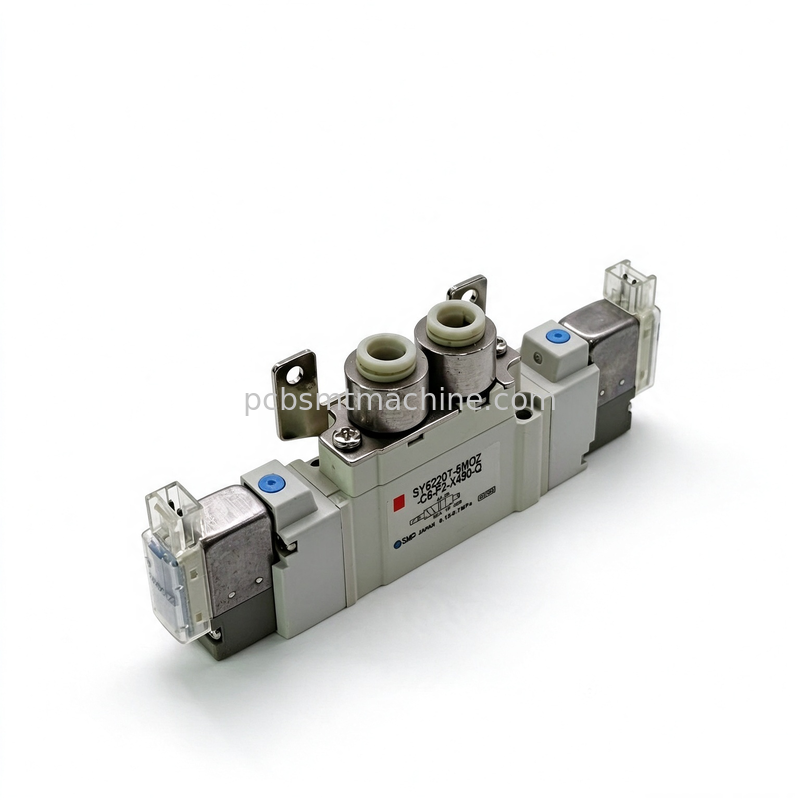

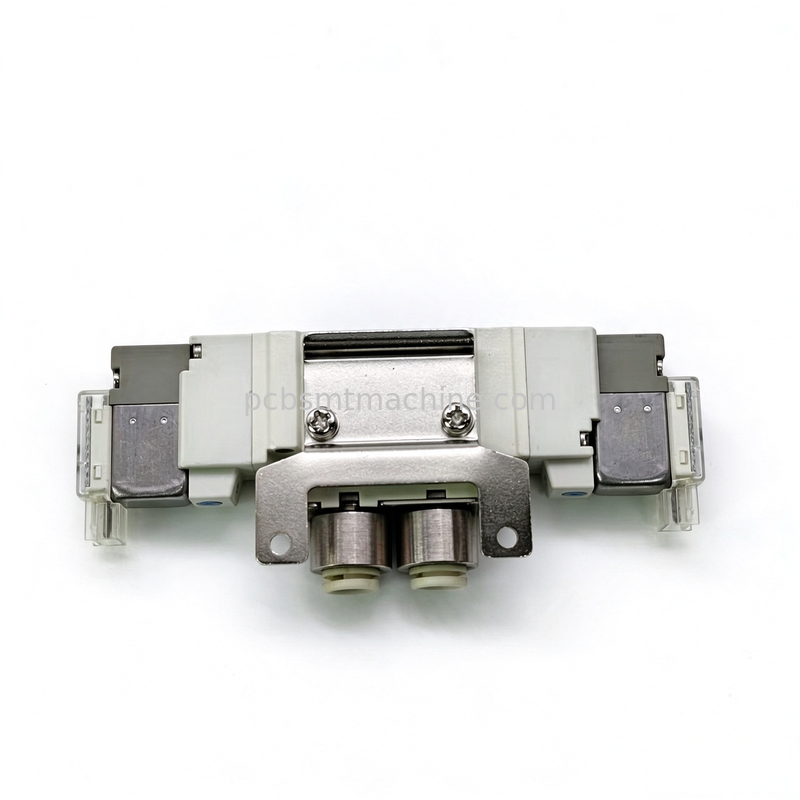

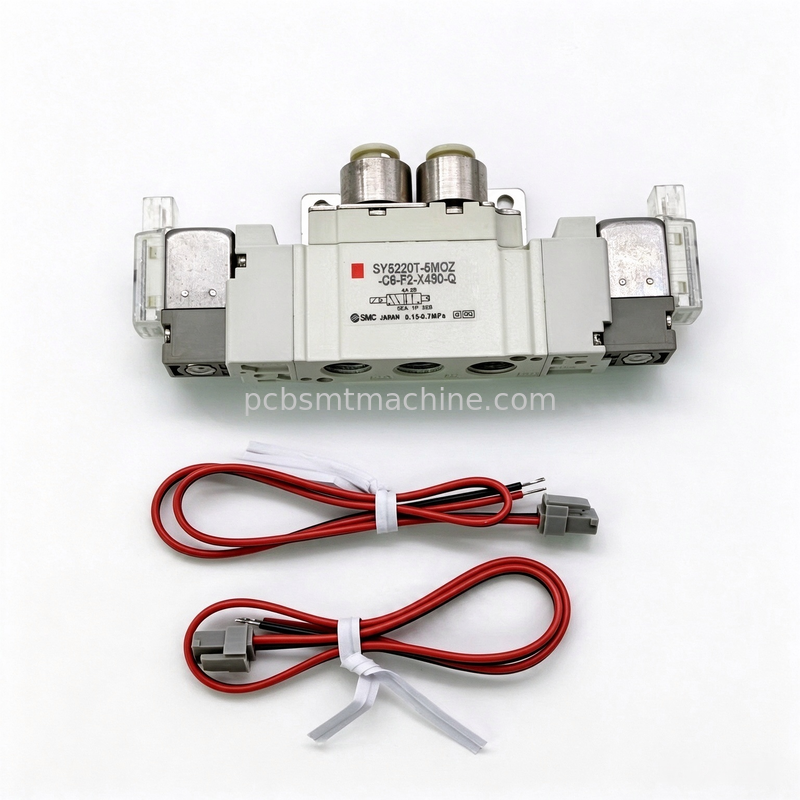

Name: Internal Pilot DC24V 2-Position Double Solenoid Valve SMC 5-Port Solenoid Valve for SMT Spare Parts
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: SY5220T-5MOZ-C6-F2-X490-Q
Price: 50.00 USD
Availability: InStock

Home > Products > SMT Spare Parts >

Internal Pilot DC24V 2-Position Double Solenoid Valve SMC 5-Port Solenoid Valve for SMT Spare Parts

Internal Pilot Solenoid Valve

DC24V 5-Port Solenoid Valve

2-Position Double Solenoid Valve

Place of Origin:

Japan

Brand Name:

SMC

Certification:

Model Number:

SY5220T-5MOZ-C6-F2-X490-Q

Request A Quote

Internal Pilot DC24V 2-Position Double Solenoid Valve SMC 5-Port Solenoid Valve for SMT Spare Parts

Product Details

Highlight:

Internal Pilot Solenoid Valve

DC24V 5-Port Solenoid Valve

2-Position Double Solenoid Valve

Payment & Shipping Terms

Minimum Order Quantity

Price

1-100USD

Packaging Details

Carton box

Delivery Time

3-5 working days

Payment Terms

L/C,D/A,D/P,T/T

Old Style Clamp Assembly with Modular Structure and Stable Clamping for SMT PCB Placement Machines

Get Best Price

Double Hole Double Column Dispensing Nozzle 0.7mm 0.4mm Hole Diameter P0.7 Pitch SMT Dispensing Nozzle for Panasonic

Get Best Price

1.3mm Orifice Ceramic Tip ESD Safe Fuji XPF Nozzle SMT Nozzle for Pick and Place Machines

Get Best Price

High Precision High Efficiency Low Maintenance Feeder Sprocket SMT Feeder Sprocket for Fuji NXT W08C 8mm Tape Feeder

Get Best Price

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

Contact Now

Product Description

Product Overview

The SY5220T-5MOZ-C6-F2-X490-Q is an internal pilot 5-port solenoid valve from the SMC SY5000 series. It is a semi-standard custom model designed for operation with compressed air, and serves as a reliable replacement spare part for pneumatic circuits on automated equipment.

Technical Specifications

Item	Parameter
Model	SY5220T-5MOZ-C6-F2-X490-Q
Type	5-port solenoid valve
Actuation	Internal pilot, 2-position double solenoid
Rated Voltage	DC24V
Wiring Style	MO (M plug, without connector)
Indicator / Surge Suppressor	Z (with indicator light and surge suppressor)
Fitting Size	C6, ø6 one-touch fitting
Option Code	F2
Working Fluid	Compressed air
Working Pressure	0.1~0.7 MPa (internal pilot)
Condition	Original
Remark	X490-Q is a manufacturer custom suffix; no detailed explanation available in public documents

Features & Cooperation Process

Core Features

Original SMC SY5000 series with elastic seal and lubrication-free design.
Stable pneumatic switching, suitable for high-cycle operation of automated equipment.
Same base valve body for interchangeable mounting (the custom suffix X490-Q requires prior verification).

Cooperation Process

Receive inquiry and verify model, working condition, and compatibility.
Issue formal quotation.
Confirm order details.
Visual inspection and power-on function test before shipment.
Anti-static packaging and delivery.
After-sales technical consultation support.

Spare Parts Solution

We can supply matching SMC pneumatic components and SMT pneumatic spare parts. Consolidated shipment is available, and discounts can be discussed for bulk orders.

Frequently Asked Questions

Q: Is the SY5220T-5MOZ-C6-F2-X490-Q an original product?

A: Yes, it is an original SMC product and is inspected before shipment.

Q: Can it directly replace the standard SY5220T-5MOZ-C6-F2?

A: The base valve body is identical. X490-Q is a custom suffix, so compatibility needs to be confirmed in advance according to working conditions and equipment requirements. Direct interchangeability is not guaranteed.

Q: What equipment is it suitable for?

A: It is a general pneumatic valve widely used in pneumatic circuits of various automated equipment. If used on SMT machines, please provide your machine model for a compatibility check.

Q: What is the MOQ and lead time?

A: Sample orders are acceptable. Lead time depends on real-time stock status; please contact us for confirmation.

Q: Can I buy other matching pneumatic spare parts together?

A: Yes. Solenoid valves, cylinders, filters, and other spare parts of the same series can be shipped together.
